Multipoint Locks

Pivox supplies a complete range of genuine Schüco multipoint locks for aluminium, composite, and timber door systems, covering single-leaf and double-leaf rebated door applications. Whether you need a Schuco multipoint claw bolt lock for a high-security entrance, a Schuco multipoint lock with strike for an electric access-controlled door, or a Schuco two point lock system for a lighter residential installation, our collection brings together authentic Schüco components at trade prices. The Schuco multipoint claw bolt lock range and the Schuco two point lock system options sit alongside SafeMatic self-locking gearboxes, latch-and-bolt locks, swing bolt locks, electric strikes, and matching strike plates — and where a project calls for a Schuco multipoint lock with strike, we stock the corresponding e-strike and 3-part strike plate to complete the assembly.

Types and Mechanisms of Multipoint Locks

Schüco multipoint locks are available in several distinct mechanisms, and the correct choice depends on the door material, security requirement, and whether the door is rebated. A claw bolt lock uses a hook-shaped claw that rotates into the keep to resist forced separation of the leaf, making it the preferred mechanism for double-leaf rebated doors and high-security applications. A latch and bolt lock combines an adjustable latch for everyday closing with a deadbolt thrown by the cylinder, while the SafeMatic system uses self-locking bolts that engage automatically when the door closes, removing the need to lift the handle. A swing bolt lock adds rotating bolts above and below the centre gearbox for additional locking points. All mechanisms operate from a euro cylinder and a centre case, with the locking action transmitted through the faceplate to the door keeps. Roller cam and slam shut mechanism variants are available for doors requiring a softer close, and most Schüco locks are designed for rebated doors with a 34mm backset.

• Schüco 241398 Claw Bolt and Pin Lock — advanced multi-point security mechanism, 34mm backset

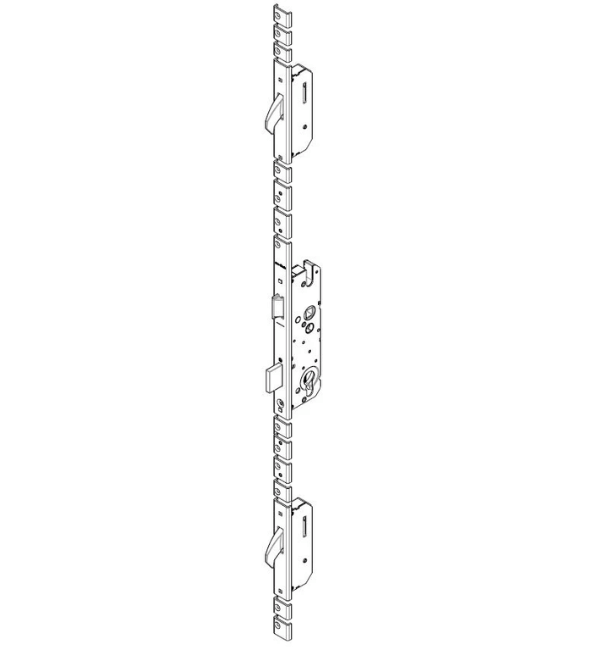

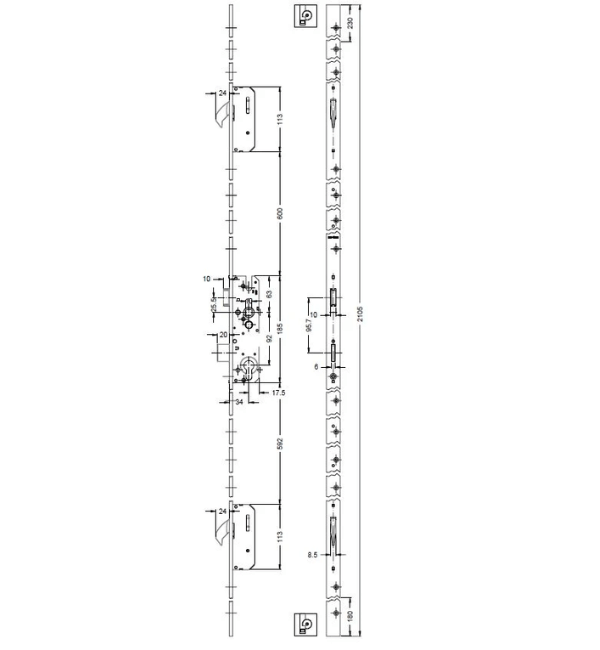

• Schüco 241782 Claw Bolt Lock — left-hand configuration, genuine Schüco component
• Schüco 211576 Claw Bolt Lock — high-security multi-point locking mechanism
• Schüco 279777 Claw Bolt and Pin Lock — 34mm backset, single and double-leaf rebated doors
• Schüco 211397 3-Point Swing Bolt Lock — main latch and bolt plus two swing bolts, U-shaped INOX faceplate
• Schüco 211849 Five Point Bolt/Latch Lock SafeMatic — self-locking latch bolts, automatic engagement
• Schüco 241498 Five Point Lock — latch and bolt, multi-point locking system

Parts and Accessories

A complete multipoint lock assembly relies on several matched parts, and Pivox stocks the centre case, gearbox, bolts, and keeps required to build or repair a Schüco locking system. The centre case houses the main lock mechanism and connects to the door gearboxes that drive the bolts and hooks toward the frame. Drive gears within the assembly transfer motion from the handle and cylinder to the locking points along the faceplate. Multi-point lock hardware accessories include strike plates, keeps, spindles, and profile cylinders, all of which must match the lock type for correct engagement. External door handles and patio door handles connect to the gearbox through a spindle, and replacement rollers, pins, and bolts are available where wear has affected the locking action. Selecting the correct accessories ensures the deadbolts and hooks seat cleanly into the keeps every time the door is closed.

• Schüco 240866 — 3-part strike plates for SafeMatic locks 241498, 279101, 279099, U-shaped INOX faceplate
• Schüco 229340 E-Strike — without strike plate, 6–12V standard, for side-hung door drives
• Schüco 241471 Bolt Lock 34mm — professional grade deadbolt mechanism
• Schüco 241183 Bolt Lock — heavy-duty security construction
• Schüco 240714 Rebate Lever Flush Bolt — 38mm backset, double-door rebated applications
• Schüco 240715 Flush Bolt Rebate Lever 63 — genuine Schüco rebated door component
• Schüco 240717 Rebate Lever Flush Bolt — replaces obsolete part 219882
• Schüco 227873 Spindle — 10mm square x 150mm length
• Schüco 227874 Spindle — 10mm square x 170mm length

Installation and Replacement

Installing or replacing a multipoint lock follows a consistent sequence regardless of mechanism. The faceplate is unscrewed from the door edge, the lever handle and any double spindle or split spindle removed, and the centre case withdrawn from the lock pocket. When fitting a replacement, the new centre case, gearbox, and any top and bottom gearboxes must align with the existing keeps, and the hook and pin or deadbolt must seat correctly in the hook box. Following the manufacturer's installation instructions, the handle is reconnected through the spindle and the latch tested before the cylinder is fitted. Where the original lock is no longer available, a like-for-like Schüco replacement matched on backset, faceplate length, and spindle type is the most reliable route. Always test the locking action with the door open before closing, so that any misalignment between the bolts and the door keep can be corrected without trapping the door shut.

• Schüco 241256 Latch and Bolt Lock — for ADS door systems, single and double-leaf rebated doors
• Schüco 241255 Door Lock — latch and bolt, ADS system, single/double rebated doors
• Schüco 241470 Roller Ball Latch Lock 34mm — smooth roller latch operation
• Schüco 279496 Bolt/Latch Lock 34mm backset — heavy-duty commercial door security

Identification and Selection Guidance

Identifying the correct Schüco multipoint lock requires measuring the door and recognising the existing mechanism before ordering. The most important figures are the backset (the distance from the door edge to the centre of the spindle), the faceplate size, and the spacing of the locking points. A door lock measurement guide should record the door's measurements at each keep position so the replacement gearbox aligns correctly. The Schuco SafeMatic security lock is identified by its self-locking bolts, while a standard latch and bolt relies on the cylinder to throw the deadbolt. Counting the hook counts and noting whether the main lock mechanism uses claws, swing bolts, or shoot bolts narrows the selection quickly. For a uPVC door lock or aluminium door, confirm the lever pad door handle type and the d measurement before ordering, and verify the locking operations — lift-to-lock, key-only, or automatic — so the replacement matches the original handing and operation.

Benefits and Advantages

Multipoint locks offer significant advantages over a single deadlock, distributing the locking force across multiple locking points along the full height of the door. This enhanced security makes forced entry considerably harder, while the even clamping pressure improves weather sealing and reduces draughts by pulling the leaf tight against the frame. Schüco systems are manufactured from high-quality materials engineered for increased durability in demanding commercial and residential settings. Precision adjustable rollers allow the door's compression to be fine-tuned for ease of use, and shoot bolt and split spindle configurations give installers flexibility across different door types. A door keep correctly matched to the lock ensures smooth daily operation, and the robust construction suits both aluminium and timber core doors. Compared with a basic nightlatch or single sash jammer, a full multipoint system delivers a marked step up in both security and everyday usability.

Availability and Ordering

Pivox holds genuine Schüco multi-point door locks in stock for fast UK dispatch, with trade prices available to fabricators, installers, and commercial accounts. Replacement locks and replacement upvc lock options are available alongside the matching replacement upvc door handle and upvc door parts needed to complete a repair. Many items qualify for next working day delivery on orders placed before the daily cut-off, and free delivery applies to qualifying order values. For large-scale installations, multi-point locking systems such as the Schüco 276476 are supplied in bulk packs, and customization on handing, faceplate, and finish can be arranged for project requirements. Where a specific croppable locks length is required, our team can advise on the correct part before you order so the locking system fits first time.

• Schüco 276476 Multi-Point Locking System LS — 1000mm length, supplied in packs of 20 for large-scale installations

FAQs and Troubleshooting

The most common door lock problems with multipoint locks relate to alignment rather than the lock itself, and many faulty door locks can be diagnosed before calling out emergency services. If the handle lifts but the door will not lock, the locking points are usually misaligned with the centre cases in the frame, and the keeps may need adjusting. A handle that feels stiff often points to a worn gearbox or a spindle that has dropped, and a split spindle replacement frequently resolves a handle that turns without engaging the latch. Lock replacement is straightforward when the new unit is matched on backset and faceplate, and security hardware such as keeps and strike plates should be inspected at the same time. Multi-point lock hardware accessories are available individually, so a single failed component can often be replaced without changing the whole lock. For complex faults, professional locksmith businesses can identify whether the issue lies in the lever handle, the gearbox, or the locking points, and advise on the correct genuine Schüco part.
