Bifold Door Hardware

Pivox stocks genuine bifold door hardware for Schuco, Smart Systems, Cortizo, and Kawneer aluminium bifold systems, supplied direct to the trade across the UK. Whether you need a Schuco bifold door handle, a Schuco bifold door hinge, Smart Systems bifold door hardware for a Visofold installation, or Cortizo Corvision bifold door hardware for a commercial or residential project, every component here is a genuine OEM part. Schuco bifold door handles and Schuco bifold door hinges, Smart Systems bifold door hardware, and Cortizo Corvision bifold door hardware are all held in stock for immediate despatch.

Types and Components of Bifold Door Hardware

A complete bifold door hardware system comprises several distinct component types. The bifold door hinge connects adjacent panel pairs, transmitting load through the folding stack. Roller assemblies — including the roller hinge set at the head — carry panel weight in the running track system and govern smooth folding operation. The bifold door handle on the outermost leaf incorporates a bifold door lock for security, with escutcheon plates covering the cylinder housing. The gearbox translates handle rotation into multi-point locking engagement across the frame. Locking mechanisms extend coverage through intermediate and slave points via multi-point security systems. Adjustment systems at hinge and roller positions allow precise panel alignment after installation. Weather sealing gaskets prevent water and air infiltration at panel junctions and frame perimeters.

• Smart ACDV425 Bifold Door Handle — shoot bolt handle for Smart Visofold, replaces ACDV225, with integrated escutcheon

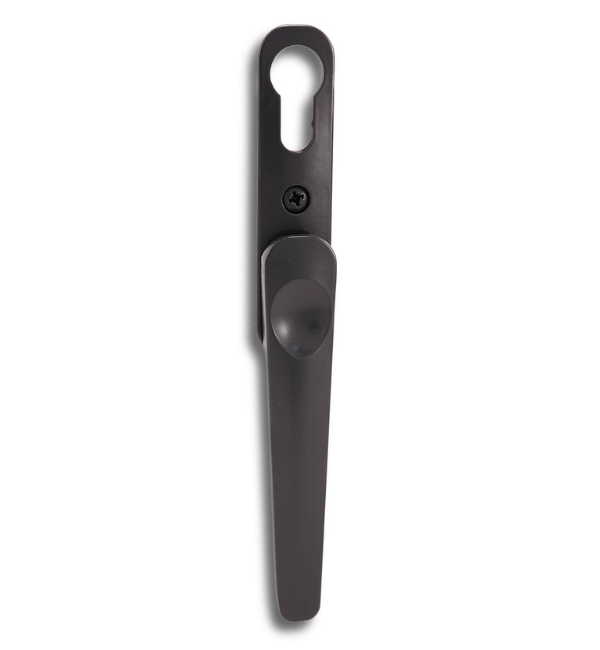

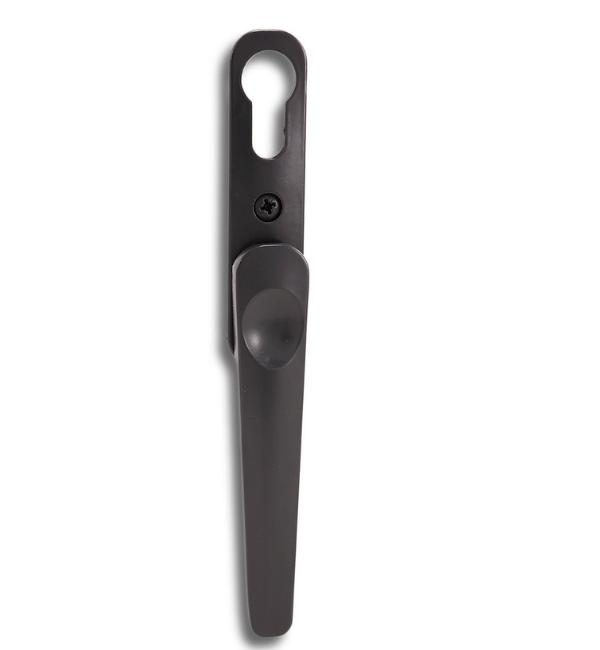

• Smart ACDV426 Bifold Door Handle — non-locking Smart Systems bifold door handle with cylinder escutcheon plate

• Smart ACDV234 Bifold Patio Door Hinge — Smart Systems bifold door hinge for Visofold open-out panels

• Smart ACDV331/BL Bifold Door Hinge — intermediate bifold door hinge for Smart Systems, black (white also available)

• Smart ACDV233/BL Top Hinge Guide Carrier — top track guide carrier, Smart Visofold 1000 bifold door hardware

• Smart ACDV232 Bifold Bottom Roller Carrier — bottom roller carrier for Smart System bifold door hardware, black/white

• Schuco 225800 / 279700 Roller Carriage Hinge — Schuco bifold door hinge, roller carriage both sides, AS FD 75

• Schuco 233931 / 233932 Roller Carriage Hinge — Schuco bifold door hinge left and right hand closer, silver aluminium

• Schuco 239584 R01 Barrel Hinge — Schuco bifold door hinge, silver finish barrel type

• Schuco 240885 Bifold Lever Handle — Schuco bifold door handle, silver, ASS 70 FD multi-point folding

• Schuco 247886 ASS70FD Shootbolt Hand Lever — Schuco bifold door handle with shootbolt, black, ASS 70 FD

• Schuco 223697 Pull Handle — Schuco bifold door handle pull type, silver anodised, AS FD 75

• Cortizo Corvision bifold door hardware — double handle set, Corvision Plus, anthracite grey and black finishes

Compliance and Standards

Bifold door hardware specified for UK residential and commercial projects must meet relevant compliance and standards requirements. BS 6375 covers the performance of windows and doors including bifold configurations. BS EN 14351-1 is the harmonised product standard for windows and external pedestrian doors, governing CE marking requirements for hardware and systems. PAS 24:2016 sets the enhanced security performance requirements that bifold hardware must satisfy under Part Q (security) of Building Regulations. Part B (fire safety) governs hardware requirements in fire-rated configurations where bifold doors form part of a fire-rated partition. Part L (conservation of fuel and power) and Part M (access) impose thermal performance and threshold options requirements respectively. Building Regulations Document L requires minimum thermal performance across the complete door assembly. RAL and British Standard colour coordination applies to hardware finishes specified against aluminium system colours. Cycle testing to BS EN 14351-1 verifies the durability of all moving components under repeated operation.

Installation Guidelines and Considerations

Correct installation of bifold door hardware determines long-term performance and security. Opening preparation must be accurate to the manufacturer's tolerances before any hardware is fitted, as structural misalignment cannot be corrected through panel adjustment alone. Load-bearing capacity of the head structure must be confirmed before specifying a top hung exterior bi-folding door system, as the full panel weight is transferred to the head fixing. Track alignment during installation determines whether the running system operates smoothly without excessive resistance. Drainage provision at the sill is required on all externally exposed bifold installations to prevent water accumulation. Thermal bridging at threshold options must be addressed through the correct specification of thermal break components. Bottom guide positions must be set accurately to maintain panel alignment under operational load. Security integration of multi-point locks and keeps requires frame rebates to be prepared to the specified dimensions. Weight capacity per panel governs roller specification and must not be exceeded in the final glazed configuration.

Maintenance and Longevity

Bifold door hardware is engineered for heavy use over the lifetime of the installation. Door hinges and door tracks should be inspected as part of a preventive maintenance schedule to identify wear before it affects operation. Monthly inspections of roller assemblies, hinge pins, and locking points are recommended on high-traffic commercial installations. Rolling polymer tyres on roller carriages provide quiet, smooth running in the track and are a common wear component requiring periodic replacement. Flawless operation over the long term depends on hardware lubrication at hinge pivots, roller carriages, and gearbox mechanisms. Ergonomic engineering of handle and lever components reduces operational fatigue on doors with large panel configurations. Security standards compliance should be verified at each service interval to confirm that locks and keeps remain correctly engaged. Stability of the folding stack is maintained by correct adjustment at all hinge and roller positions. A 10-year warranty is offered by Smart Systems on Visofold hardware components.

Troubleshooting and Common Issues

The most frequent bifold door hardware issues relate to panel alignment, door binding, and seal condition. Door binding occurs when track alignment has shifted or roller carriages have worn, causing the panels to drag or catch during operation. Adjustment verification at all hinge and roller positions is the first step when any operational issue is reported. Locking mechanisms that fail to engage fully often indicate misalignment between the gearbox throw and the keep position — panel alignment adjustment resolves this in most cases. Roller inspection should check for worn or cracked rolling surfaces, particularly rolling polymer tyres on heavy-panel configurations. Handle operation problems typically indicate a worn gearbox or misaligned spindle rather than a handle fault. Seal replacement at the panel perimeter restores weather performance when seal condition has deteriorated. Hardware lubrication of all moving parts eliminates operational noise and reduces wear. Track cleaning removes debris that causes track contamination and impedes smooth running. Security testing of locks and keeps at each service confirms the installation remains compliant with its specified performance level.

Hardware Quality and Value

Genuine products only are stocked by Pivox — no generic or pattern-part substitutes are sold in place of manufacturer-specified components. Durable hardware from Schuco, Smart Systems, and Cortizo is manufactured to the exacting tolerances of each system profile, ensuring correct engagement of all locking and weathering components. Robust systems designed for specialist and commercial bifold applications use marine-grade materials at exposed stainless steel fixings and roller components for corrosion resistance. Quality inspection of each component batch is carried out by the original manufacturer prior to despatch. Security-enhanced systems specified to PAS 24 rely on the complete hardware assembly meeting its tested configuration — substituting non-genuine parts invalidates the performance claim. Specialized hardware for high-traffic or large-panel configurations is available across the Schuco and Smart Systems ranges. Warranty coverage and maintenance costs over the life of the installation are lowest when genuine manufacturer components are used throughout. Property value is supported by correctly specified and maintained bifold door hardware that retains its appearance and performance.

Cost Considerations

Bifold door hardware cost varies significantly across the premium systems (Schuco, Kawneer), mid-range systems (Cortizo, Smart Systems), and standard systems available in the UK market. Initial hardware costs for a complete Schuco bifold installation reflect the precision manufacturing and thermal performance of the system. Hardware and track kits for Smart Systems Visofold installations offer competitive pricing relative to system performance, making Smart Systems bifold door hardware one of the most specified mid-range choices for residential projects. Bi-fold door locks, handle sets, and roller assemblies are the highest-cost hardware components within any system. Installation time is reduced when genuine components are used, as tolerances are verified against the system profile. Total door cost should account for materials, hardware components, and installation time together rather than initial hardware costs in isolation. Value analysis over a ten-year horizon typically favours premium systems (Schuco, Kawneer) where maintenance costs and replacement frequency are lower.

Choosing the Right Bifold Door Hardware

Selecting bifold door hardware begins with confirming hardware system quality against the project specification. Sightlines — the visible face widths of frame and hinge profiles — are a key aesthetic criterion, with premium vs. standard systems differing significantly on this dimension. Panel weight distribution across the folding stack determines the roller carriage and hinge specification required; heavier glazed panels require roller assemblies rated to a higher weight capacity. Handle spindle length must match the panel construction depth; incorrect spindle length prevents full gearbox engagement. Fixing centres for hinges and roller carriages must align with the system extrusion to achieve correct load transfer. Manufacturer differences in extrusion geometry mean that hardware from one system cannot be substituted into another without compromising performance. Thermal performance of the complete assembly — frame, glazing, and hardware — must be assessed together to meet energy efficiency requirements. Security compliance under PAS 24 governs the tested hardware configuration and must not be altered by component substitution. Weather resistance of seals and hardware finishes is a critical selection factor for externally exposed bifold installations. Threshold options including low-threshold and barrier-free sill profiles require compatible hardware specification.

Frequently Asked Questions

Common questions about bifold door hardware cover a range of topics from product selection to long-term support. A bi-fold door handle on the outermost leaf must match the system profile — using a non-system handle risks incorrect escutcheon sizing and bi-fold door lock misalignment. The track system on which the panels run must be installed level and to the manufacturer's dimensional tolerance; any deviation causes operational difficulty that panel adjustment alone cannot fully correct. A top rail runner or top guide is required on all top-hung bifold systems to constrain the panels laterally at the head. A bottom guide pin engages a floor channel to prevent lateral panel movement at the sill. Bi-folding wardrobe door kit hardware differs from structural external bifold hardware in load rating and weather resistance and should not be substituted into external applications. Weight capacity per panel varies by system; exceeding it risks roller and track damage and voids manufacturer warranty. A folding configuration with an odd number of panels requires a floating pivot at the end panel rather than a fixed hinge. Installation support and technical consultation on hardware specification for complex projects is available from the Pivox trade team. Manufacturer warranty terms vary by component; troubleshooting assistance for out-of-warranty installations is available on request.
