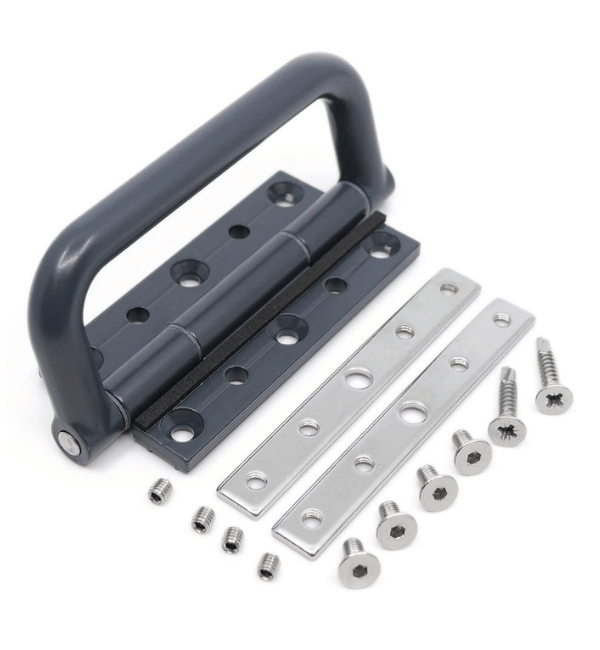

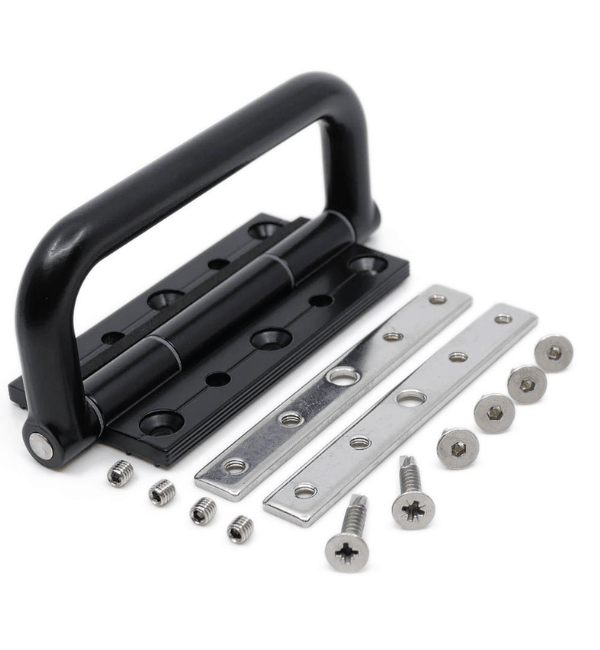

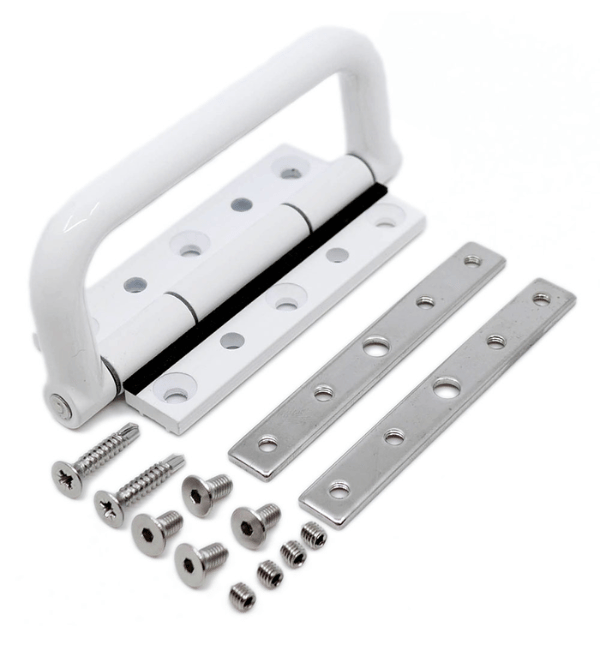

Smarts Visofold 1000 Pull Hinge Open Out - PAS24 Compliant Security Door Hardware

Enhance your Smarts Visofold 1000 door system with this premium PULL HINGE OPEN OUT (DBV1-12/OUT). This innovative component combines a hinge and pull handle into a single, elegant design, offering a sophisticated alternative for your door system.

Key Features and Benefits:

• System Compatibility: Specifically designed for the Smarts Visofold 1000 door system.
• Dual Functionality: Integrates a hinge and a pull handle for a streamlined look.
• Enhanced Security: Rigorously tested and PAS 24 compliant, ensuring a high level of security.
• Weather Resistance: Tested to BS 6379 parts 1 & 2 for excellent weather performance.
• Durability Tested: Successfully completed 10,000 open/close cycles on a bi-fold set at maximum weight.
• Quality Construction: Hinge body made from extruded aluminum with stainless steel pins for superior strength and longevity. Features self-lubricating bushes with high load qualities.
• Weight and Size Capacity: Suitable for door panels up to 120kg and 1200mm wide (refer to Smarts fabricator manual for specific guidance).
• Improved Weathering: Incorporates a sealing strip between hinge leaves to enhance weather protection.
• Ergonomic Handle: D-handle crafted from zinc die-cast, featuring a rounded shape that complements the hinge knuckle size.
• Durable Finish: Finished with Polyester Powder Coating (PPC).
• Long-Term Reliability: Comes with a 10-year manufacturer's warranty.
• Available Finishes: Offered in sophisticated Black Matt, White Gloss, and Grey Matt.
• Part Code Alternative: Serves as an alternative to Smarts part codes ACDV234 OUT & ACDV274 IN.
• Manufacturing Standard: Quality manufactured to BS EN ISO 9001:2019.
• Included Hardware: All stainless steel clamp plates and fittings are supplied.
