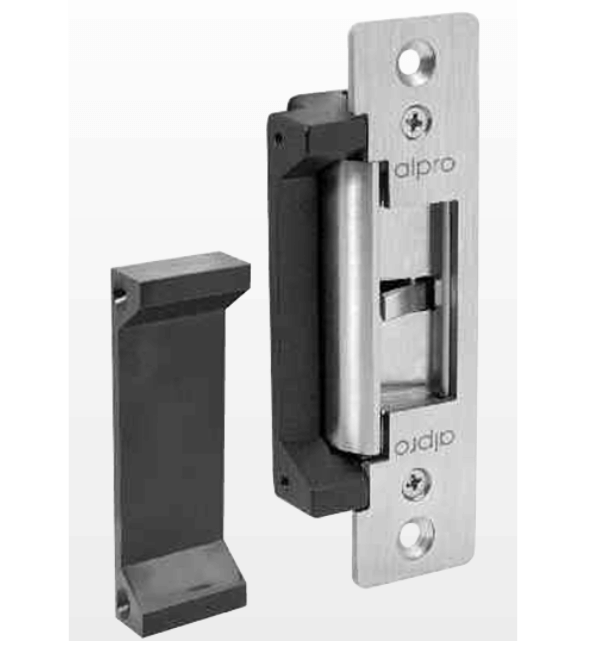

ALPRO EL901M - 12V DC ANSI PTL Fail Open Monitored Electric Strike

Enhance your access control system with the ALPRO EL901M, a robust 12V DC monitored electric door strike. Designed for security and convenience, this unit features ANSI PTL (fail open) functionality, ensuring emergency egress by unlocking when power is lost. Its integrated monitoring capabilities provide crucial status feedback, making it ideal for advanced security applications in both metal and timber door setups.

Key Features:

• Fail Open (PTL) Functionality: Automatically unlocks upon power loss for safety and egress.
• Integrated Monitoring: Provides real-time status feedback (Red + Blue NC, Green C, Red Yellow NO) for seamless access control integration.
• Compact Stainless Steel Design: Features a durable 35mm deep stainless steel body for a sleek and robust installation.
• Low Power Consumption: Operates efficiently with a current draw of only 300mA at 12V DC.
• Versatile Application: Suitable for use on both metal and timber doors.

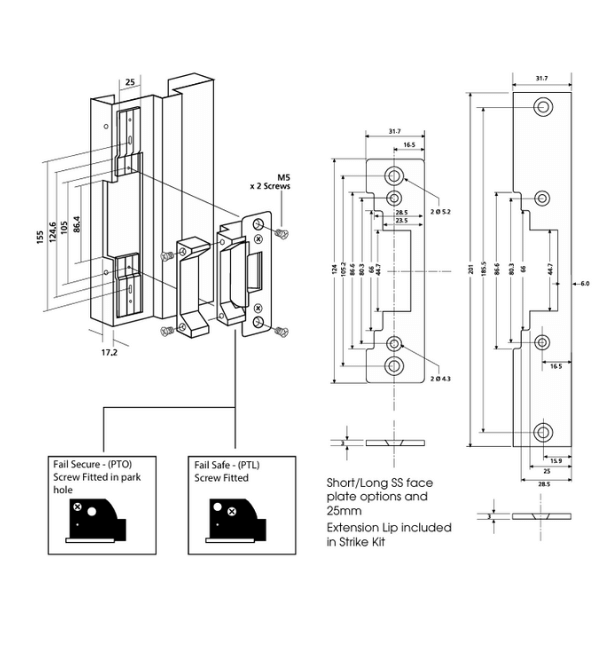

• Complete Installation Kit: Includes long and short ANSI stainless steel faceplates, a 25mm extension lip, and all necessary mounting hardware.

Technical Specifications:

• Voltage: 12V DC
• Current Draw: 300mA
• Body Depth: 35mm
• Material: Stainless Steel
• Functionality: PTL (Fail Open) with Monitoring
• Monitoring Outputs: Red + Blue NC, Green C, Red Yellow NO
• Included Faceplates: Long and short ANSI stainless steel
• Included Extension Lip: 25mm

The ALPRO EL901M is the perfect choice for commercial installations, security-focused environments, and any system requiring reliable fail-open operation with essential door status monitoring.
