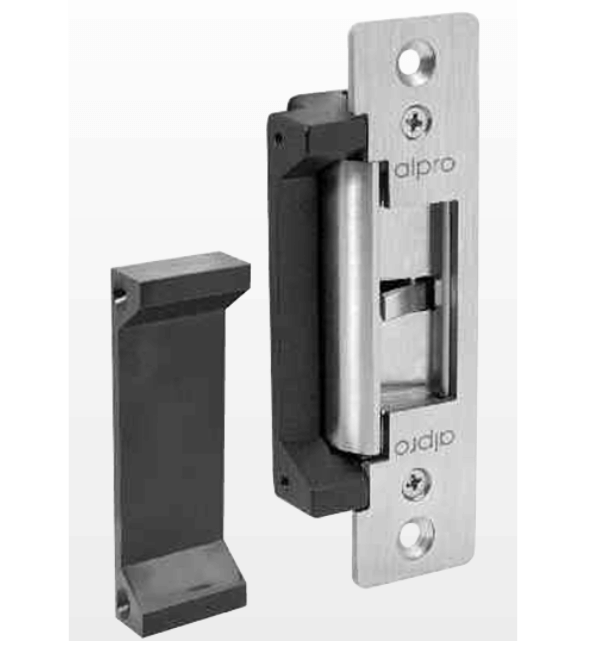

ALPRO EL903M - 24V DC ANSI PTL Fail Open Monitored Electric Strike with Stainless Steel Faceplates

Enhance your commercial access control system with the robust ALPRO EL903M. This 24V DC electric strike offers ANSI PTL (fail open) functionality and integrated monitoring, ensuring reliable security and status feedback for metal and timber doors. Its compact, low-power design makes it ideal for sophisticated installations.

Key Features:

• Fail Open (PTL) Functionality: Automatically unlocks when power is lost, crucial for emergency egress.
• Integrated Monitoring: Provides real-time door status for seamless integration with access control systems.
• Compact Stainless Steel Body: Features a slim 35mm depth for versatile installation.
• Low Power Consumption: Operates efficiently with only 150mA at 24V DC.
• Versatile Application: Suitable for both metal and timber door types.

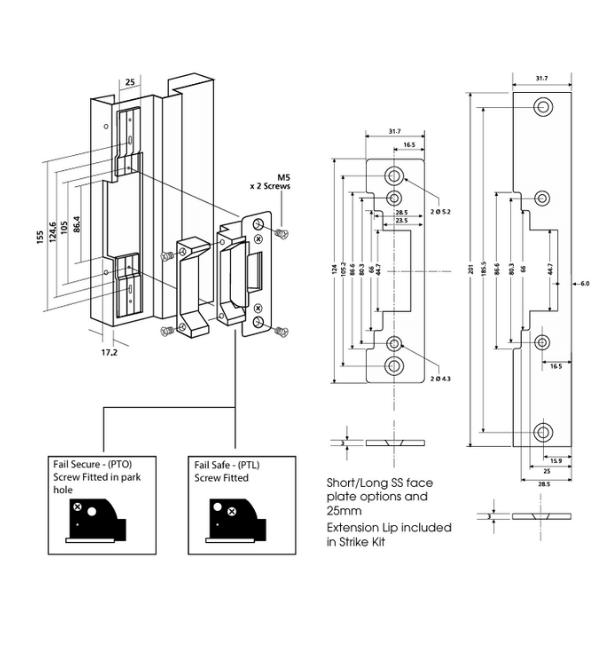

• Complete Installation Kit: Includes long and short ANSI stainless steel faceplates, an extension lip, and all necessary mounting hardware.

Technical Specifications:

• Voltage: 24V DC
• Current Draw: 150mA
• Body Depth: 35mm
• Material: High-grade Stainless Steel
• Functionality: PTL (Fail Open) with Status Monitoring
• Monitoring Outputs: Red + Blue (NC), Green (C), Red/Yellow (NO)
• Included Faceplates: Long and Short ANSI Stainless Steel
• Included Extension Lip: 25mm
• Warranty: 3 Year Guarantee

The ALPRO EL903M is the ideal choice for advanced commercial access control, security applications requiring 24V power, and any setup prioritizing fail-open functionality with essential feedback.
