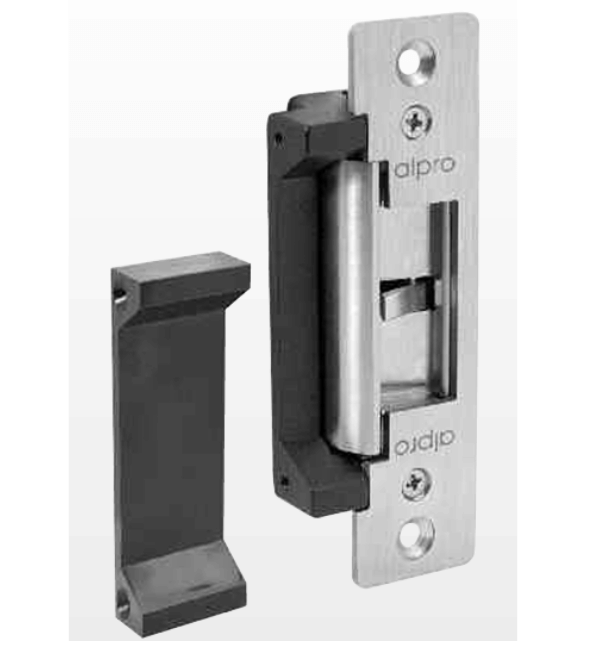

ALPRO EL904M - 24V DC ANSI PTO Fail Secure Monitored Electric Strike with SS Faceplates

The ALPRO EL904M is a high-security, compact 24V DC monitored electric door strike designed for demanding access control applications. Featuring ANSI PTO (fail secure) functionality, this electric strike ensures maximum security by keeping the door locked when power is lost. Its built-in monitoring capabilities provide essential status feedback for seamless integration into advanced commercial access control systems.

Key Features & Benefits:

• Robust Security: Fail Secure (PTO) operation for enhanced protection.
• Integrated Monitoring: Built-in sensors offer real-time door status feedback (Red + Blue NC, Green C, Red Yellow NO) for comprehensive access control.
• Compact & Durable: Features a 35mm depth stainless steel body for longevity and discreet installation.
• Low Power Consumption: Efficiently operates at 24V DC with a low current draw of only 150mA.
• Versatile Application: Ideal for both metal and timber doors in commercial environments.

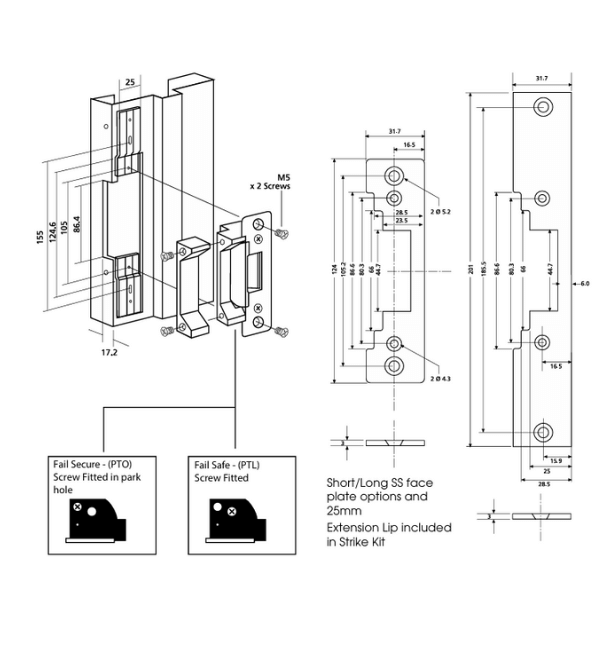

• Complete Installation Kit: Includes long and short ANSI stainless steel faceplates, a 25mm extension lip, and all necessary mounting hardware.
• Extended Warranty: Backed by a 3-year guarantee for peace of mind.

Technical Specifications:

• Voltage: 24V DC
• Current Draw: 150mA
• Body Depth: 35mm
• Material: Stainless Steel
• Functionality: PTO (Fail Secure) with Integrated Monitoring
• Monitoring Outputs: Red + Blue NC, Green C, Red Yellow NO
• Included Faceplates: Long and short ANSI stainless steel
• Included Extension Lip: 25mm
• Warranty: 3 Year Guarantee

The ALPRO EL904M is the perfect solution for high-security commercial access control systems that demand reliable fail-secure operation, detailed status monitoring, and efficient 24V DC power usage.
