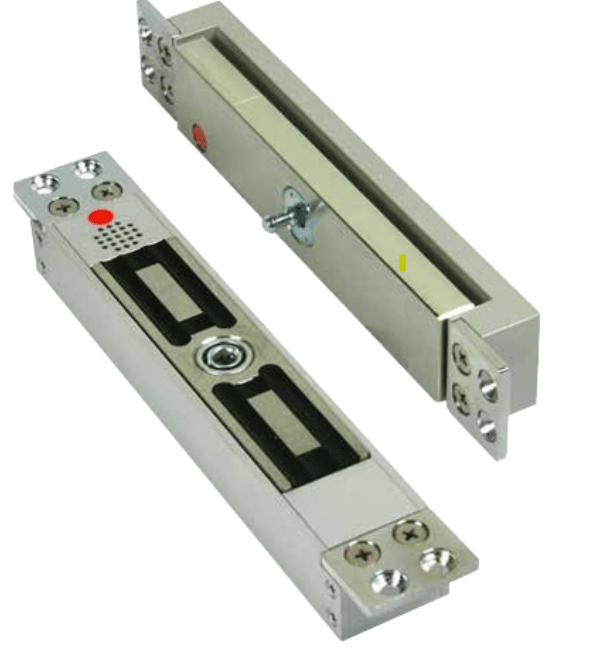

ALPRO VORTEX AL1982-35-5 Mortice Door Magnet - High Security Electro-Magnetic Lock

This high-quality Alpro Mortice Door Magnet AL1982-35.5 is specifically designed for use in mortice installations. This electro magnet provides a superior level of security through its patented mechanism. When external pressure is applied, a pivoting pin head with integrated ball bearings initiates an additional locking action, securely holding the armature plate in place. This innovative feature, combined with its high holding force and Early Warning (EW) alarm technology, makes the AL1982-35.5 an exceptionally reliable choice for advanced security applications.

Key Features:

• High Holding Force: Up to 1,500Kg
• Security Mechanism: Pivoting pin head with integrated ball bearings for enhanced locking under side load pressure.
• Alarm Technology: Integrated Early Warning (EW) alarm system.
• Dual Monitoring: Provides both locking status and door position feedback.
• Voltage Compatibility: Supports a wide range of input voltages from 12V DC to 24V DC.
• Low Current Consumption: Efficient power usage (12V DC @ 240mA; 24V DC @ 120mA).
• Compact Dimensions:
  Magnet Body: 226mm(L) x 35.5mm(W) x 26.5mm(D)
  Armature Plate (including bracket): 226mm(L) x 35.5mm(W) x 25.7mm(D)
