Premium concealed door hinges with advanced 3D adjustment and enhanced security features

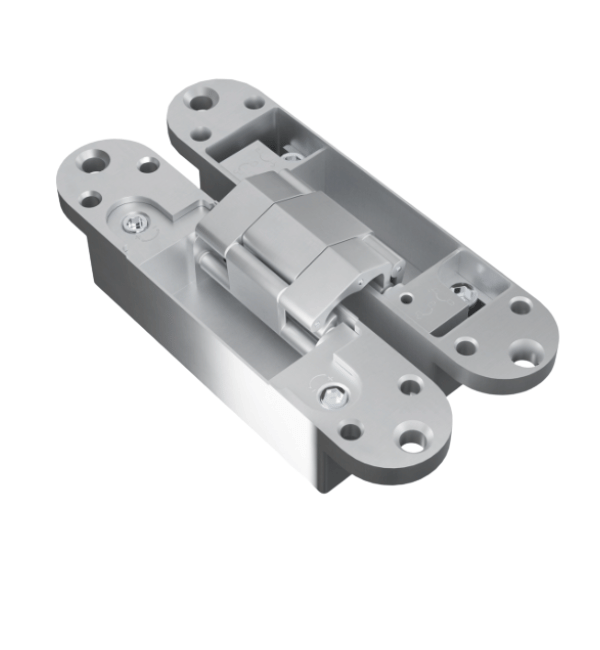

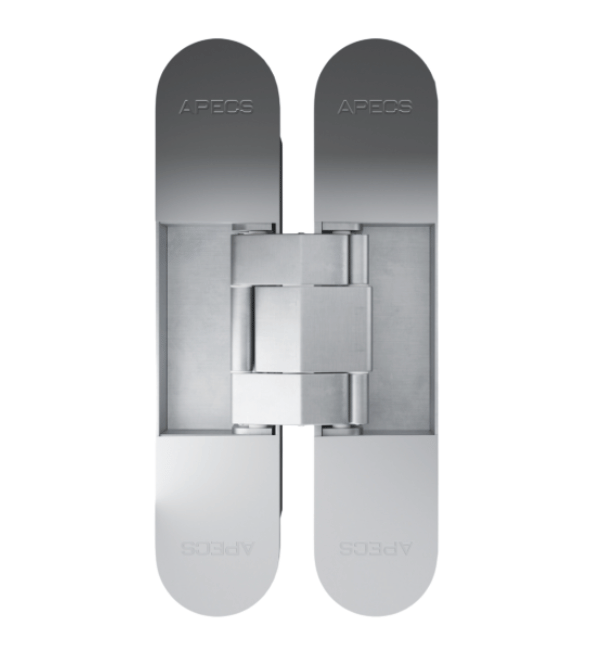

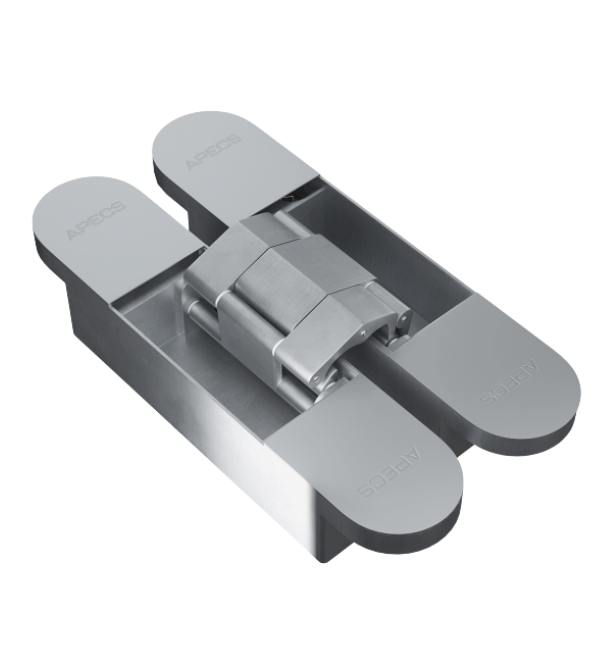

The APECS 3D 60 Concealed Hinges represent the pinnacle of invisible door hardware technology. Engineered for unobtrusive mounting, these hinges incorporate advanced security features with no external components visible or vulnerable to attack.
Advanced Security & Adjustment Features
- Completely concealed design - no visible external components for enhanced security
- Full 3D adjustment capability - precise installation and ongoing maintenance
- Vertical adjustment: ±2.5mm for perfect door alignment
- Horizontal adjustment: ±2mm for optimal positioning
- Depth adjustment: ±1mm for flush door fitting
- Smooth removable covers for easy access and maintenance
- 180° opening angle - maximum door swing capability
Professional Performance Specifications
Designed for flush-faced or wooden doors up to 60kg in both commercial and residential buildings. The robust zinc alloy construction with matt chrome finish ensures durability while maintaining aesthetic appeal.

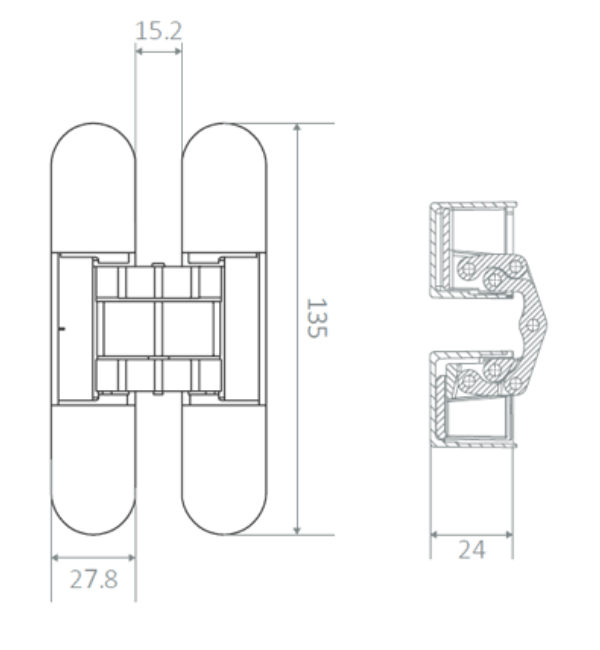

Complete Technical Specifications
Material: Zinc Alloy
Height: 135mm
Depth: 25mm
Opening Angle: 180°
Cutting Diameter: 28.5mm
Maximum Door Weight (pair): 60kg
Minimum Door Thickness: 36mm
Maximum Door Width: 900mm
Maximum Door Height: 2100mm
Finish: Matt Chrome
Installation Specifications
- Cutting Length: 135.5mm / 92.5mm
- Cutting Depth: 8.5mm / 25.5mm
- Professional installation recommended for optimal security and performance
Supplied as a complete pair - the ideal solution for security-conscious applications requiring invisible, adjustable door hardware.
