Professional euro sashlock designed for slimline aluminium profiles with variable backset options

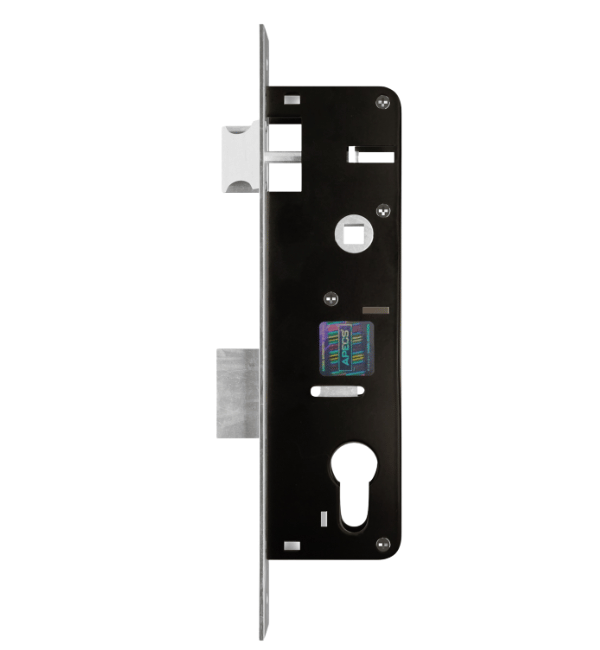

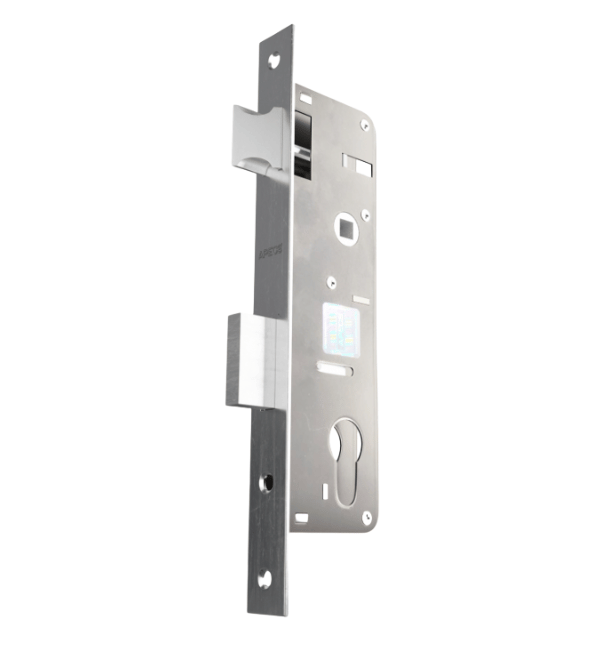

The APECS NP75 Euro Sashlock is specifically engineered for modern door applications where traditional multi-point locking systems are not suitable. This versatile lock provides an ideal solution for slimline aluminium profiles while maintaining compatibility with uPVC and timber doors requiring 85mm PZ centres.
Key Features and Benefits:
- Wide backset range (20mm-45mm): A solution for virtually all narrow-style doors.
- 85mm PZ centres: Standard European cylinder compatibility.
- Reversible latch mechanism: Simple twist operation to change door handling.
- Slimline design: Ideal for modern aluminium profiles.
- Steel construction: Ensures durable and reliable performance.
- Multi-angle spindle hole: Offers flexible installation options.
- No multi-point system required: Simplifies installation.
- Quick handling changes: Efficient on-site modifications.
- Modern profile compatibility: Works with the latest door designs.
Compatible Door Types:
- Slimline aluminium profiles (primary application)
- uPVC doors (where 85mm centres are required)
- Timber doors (narrow-style installations)
- Commercial applications (office and retail environments)
- Residential doors (modern home installations)
Specifications:
Standard Range (20-35mm Backset)
- Case Width: 13mm
- Bolt Throw: 15mm
- Backset Range: 20-35mm
Extended Range (40-45mm Backset)
- Case Width: 15mm
- Bolt Throw: 20mm
- Backset Range: 40-45mm
Universal Technical Details:
- Material: Steel
- Centres (PZ): 85mm
- Case Height: 174mm
- Faceplate Width: 23mm
- Faceplate Length: 240mm
- Bolt Height: 43mm
- Bolt Width: 10mm
- Spindle Hole: 8mm (Multi-angle on extended range)
The reversible latch feature allows quick and easy modification of door handling without disassembly. Simply twist the latch mechanism to change from left-hand to right-hand operation, making it ideal for installers who need maximum flexibility on-site.
The APECS NP75 is the professional choice for modern door installations requiring 85mm PZ centres with maximum backset flexibility.
