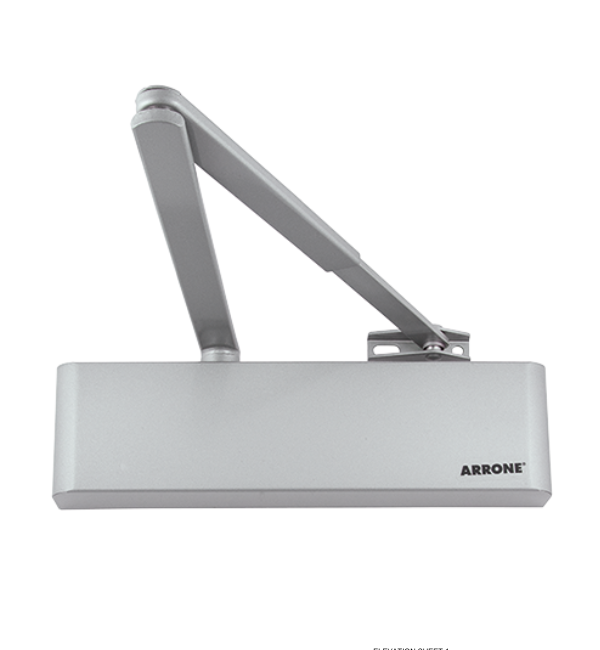

ARRONE AR5500 Heavy-Duty Overhead Door Closer - EN 3-5 Adjustable Power

The ARRONE AR5500 Door Closer is a robust, reliable, and versatile solution designed for demanding, heavy-duty environments with high traffic. This overhead door closer offers exceptional customisation with adjustable power size (EN 3-5, EN2 by template), closing speed, latch action, and backcheck functions, ensuring controlled operation. It has been rigorously tested to BS EN 1154 and is Certifire Approved for use on fire-rated doors, providing confidence in both the safety and reliability of your door systems.

Key Features:

• Adjustable power size: EN 3-5 (EN2 by template), factory set to EN 4.
• Heavy-duty applications: Suitable for demanding environments with high traffic.
• Backcheck function: Protects doors and walls from damage by providing resistance when opened with excessive force.
• Adjustable closing and latch speed: Ensures controlled door operation.

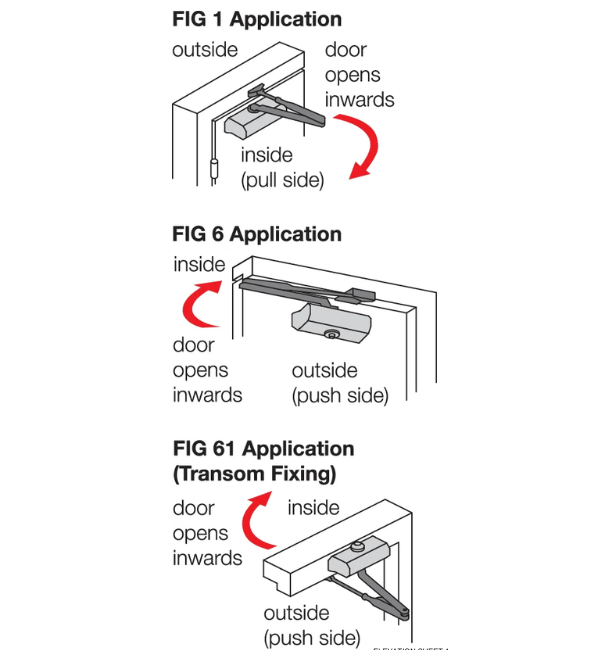

• Surface-mounted overhead door closer: Designed for universal installation.
• Capacity: Suitable for doors up to 100kg and 1250mm wide.
• Maximum opening angle: 180° allows for full door movement.
• Certifire approved: (CF295) and successfully tested to BS EN 1154 and BS EN 1634-1 for fire-rated timber doors (30, 60, 120 minutes) and steel doors (240 minutes).
• Finishes: Available in silver, satin stainless, or polished stainless to complement various door hardware.

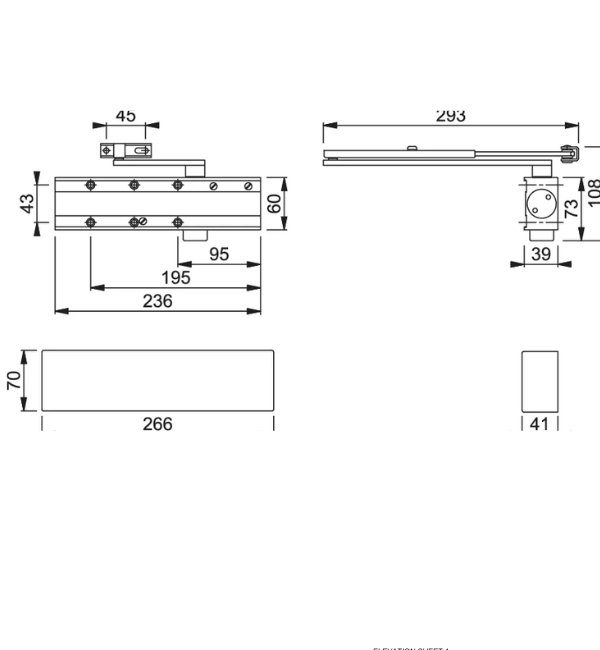

• Slimline radius cover: (266mm x 70mm x 41mm) for a stylish and aesthetic design.
• Mechanism dimensions: 236mm x 60mm x 38.5mm.
• Fixing centres: 95mm x 195mm x 45mm.
