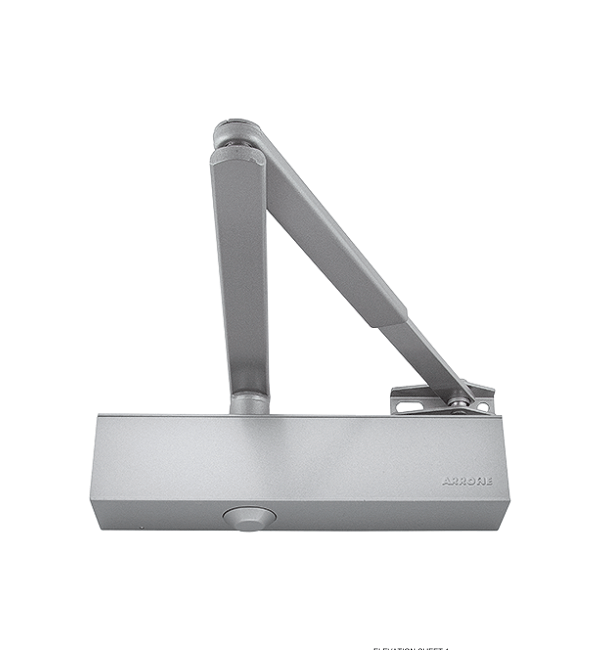

Arrone AR9200 Overhead Surface Mount Door Closer - Silver Finish (Item 87109286)

Enhance the security and functionality of your doors with the Arrone AR9200 Door Closer. This premium overhead surface mount closer, finished in a sleek silver enamel, is engineered for exceptional durability and reliable performance. Designed for use with wooden doors, it offers adjustable power from EN 2 to EN 6, making it suitable for a wide range of applications.

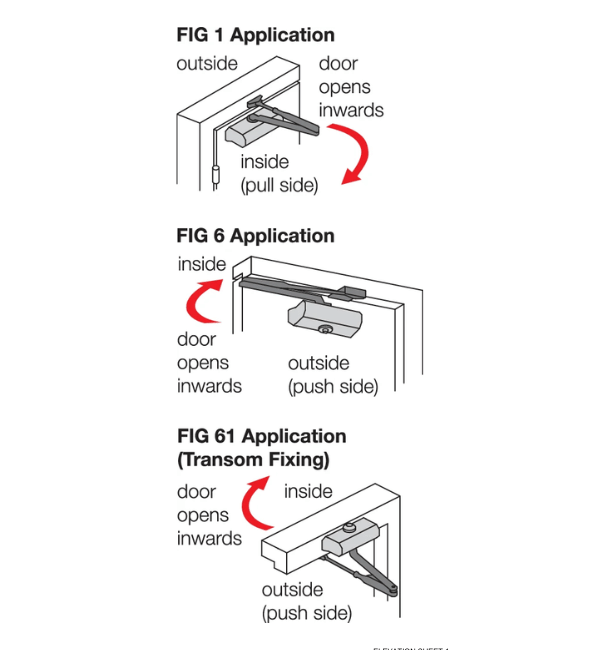

The AR9200 is versatile and supports various arm applications, including Figure 1, Figure 6, and Figure 61. It is capable of handling doors up to 1400mm wide and weighing up to 120kg, ensuring smooth and controlled operation.

Key Features and Product Details:

• Power Size: Adjustable EN 2 to EN 6
• Maximum Door Width: 1400 mm
• Maximum Door Weight: 120 kg
• Finish: SE Silver Enamel
• Mechanism: Rack & Pinion
• Functions: Adjustable closing speed, latching speed, and backcheck
• Mounting Positions: Compatible with Fig 1, Fig 6, and Fig 61
• Certifications: CE (AD0162), UKCA (UK-AD7684), Certifire CF295
• Fire Rating: Tested and approved for 30, 60, and 120-minute timber fire doors
• Cover: Integrated slide cover for a clean aesthetic
• Opening Angle: Maximum 180°
• Fixings: Suitable for timber doors
• Arm Type: Scissor arm with adjustable flat form

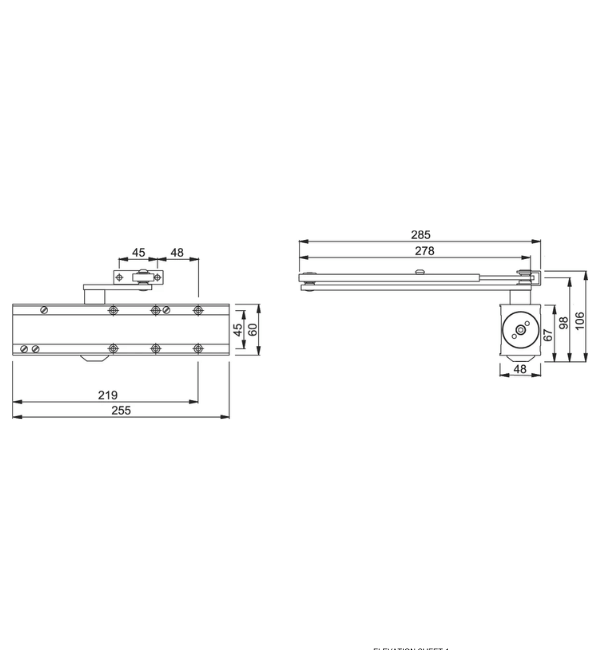

• Dimensions: 256.5mm (length) x 60mm (height) x 48.2mm (depth)

The Arrone AR9200 is CE and UKCA marked, and Certifire approved, meeting stringent safety standards including BS EN 1154:1997 and BS EN 1634-1. Its controlled closing and latching speeds, along with the backcheck functionality, provide added safety and convenience. Whether for new installations or replacements on fire-rated timber doors, the AR9200 delivers the trusted reliability, safety, and performance required by professionals.
