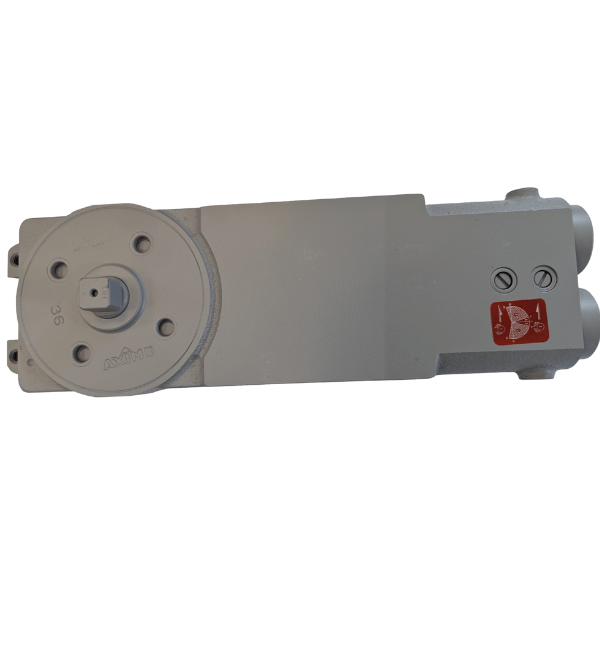

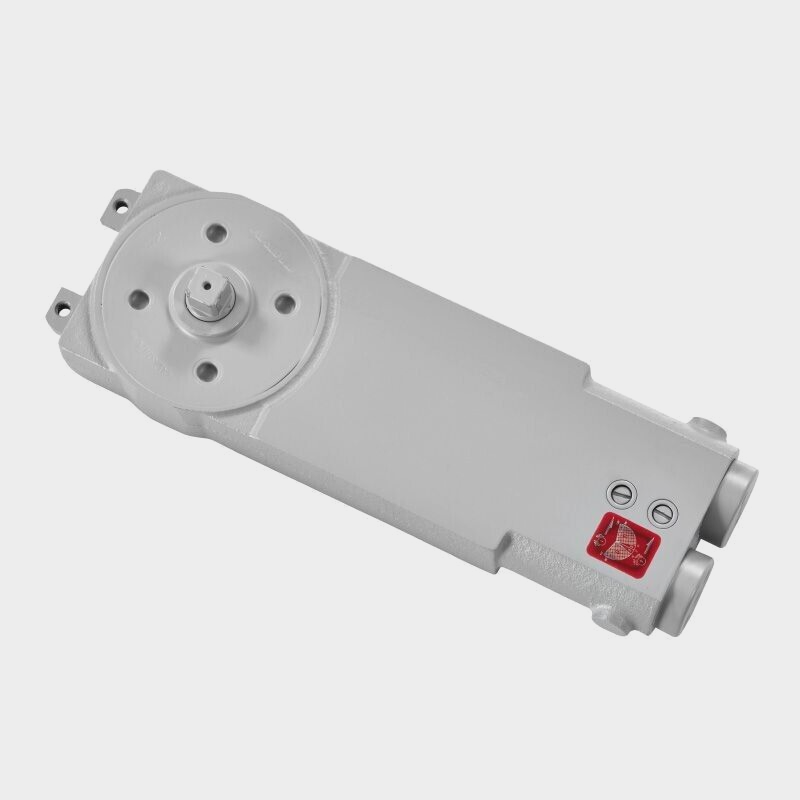

Axim Concealed Overhead Transom Closer TC-8800 Series

The Axim TC-8800 (ATC8802010) universal concealed closer is a high-performance, hidden commercial door closing solution. It is integrally housed within the door leaf and transom, eliminating the need for external hardware and providing a clean, uncluttered, and secure appearance. This closer offers flexibility with various door control options, including a no-hold opening feature suitable for low-traffic areas, and adjustable closing and latching speeds.

Key Features:

• Product Code: ACT8802010
• Series: TC-8800 Series
• Type: Concealed Overhead Transom Door Closer
• Operation: Double Action (suitable for single and double action doors)
• Hold Open: No Hold Open
• Spindle: 15mm Extended Spindle (also available with 10mm extension)
• Adjustments:
• 2 valves for closing and latching speed adjustment
• Pre-set cushion back-check
• Compatibility:
• Suitable for door widths: 751mm to 950mm
• Maximum door leaf weight: 100Kg

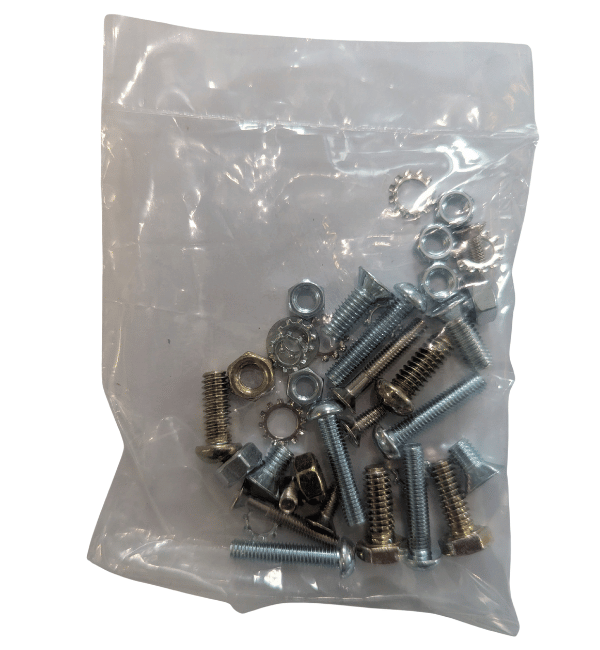

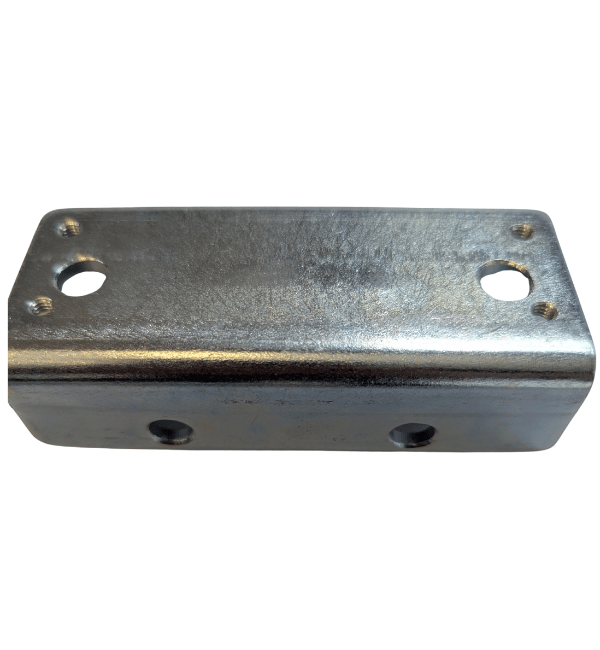

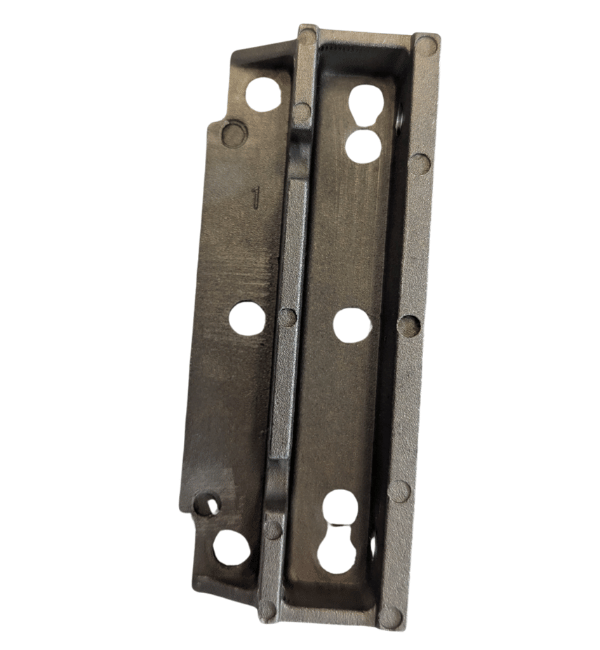

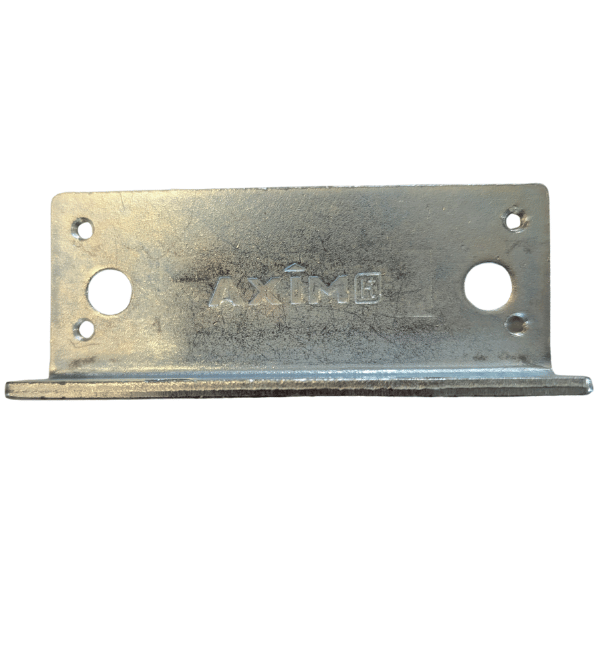

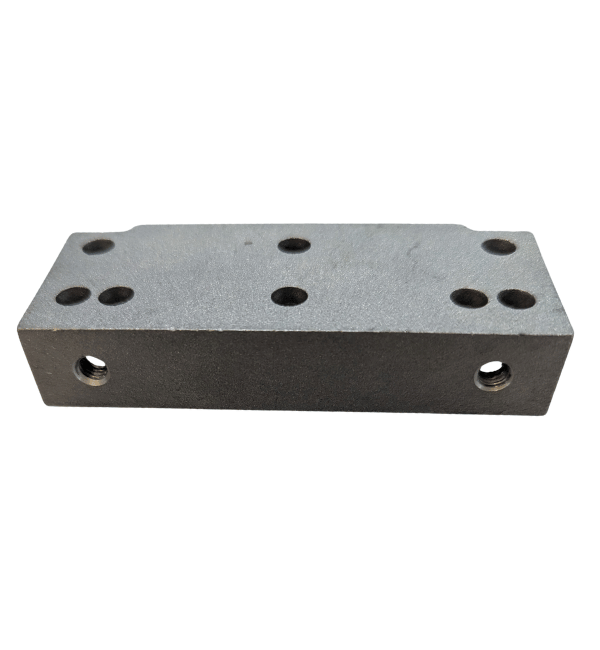

• Included Components: Body unit and fixings (70mm bracket size 2)
• Optional Packages: Standard and anti-finger trap options available. Dummy unit also available.
