Hoppe ARRONE AR1500 Door Closer – Satin Stainless Steel, Black Arm

The Hoppe ARRONE AR1500 is a power size 2-4 overhead door closer for timber doors up to 1100 mm wide and 80 kg, with spring-adjustable closing speed, latching speed and backcheck built into a rack-and-pinion mechanism under a radiused cover. This AR1500-SSS version has a SSS Satin Stainless Steel finish, finished with the RAL 9017 traffic black (ebony black) standard arm. Tested to BS EN 1154:1997 and fire tested to BS EN 1634-1, it holds Certifire approval (CF294) for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors, making it a dependable AR1500 door closer for commercial, education, healthcare and residential fire door installations.

Technical specification

• Finish: SSS Satin Stainless Steel cover, RAL 9017 traffic black (ebony black) standard arm
• Range: ARRONE Range
• Power size: EN 2 to EN 4, adjustable by spring tension
• Function: closing speed, latching speed and backcheck, all spring-adjustable
• Mechanism type: Rack & pinion, radiused cover
• Shape: Slimline
• Arm type: Scissor arm, fixed joint, flat form, adjustable
• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
• Opening angle: max. 180°

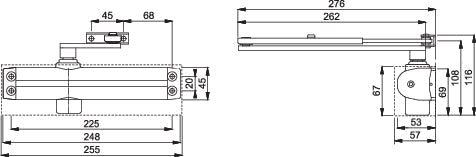

• Mechanism dimensions: 248 x 45 x 53.5 mm; fixing centres 225 x 20 mm
• Fixings: Timber door
• Tested door width: 1100 mm; tested door weight: 80 kg
• BS EN 1154:1997 classification: 4 | 8 | 4/2 | 1* | 1 | 4
• Fire tested to BS EN 1634-1: 30, 60 and 120 minute timber fire doors, 240 minute steel fire doors
• Certification: CE AD0124, DoP HUK0001, Certifire CF294
• Satisfies BS 8300 / ADM opening force recommendations when fitted to a door of minimum 938 mm width, per third-party test data (other installed hardware, door seals and differential air pressure can affect as-fitted performance)
• Corrosion resistance: Very high corrosion resistance, grade 4 to EN 1670

• Article number: 87107180 — Product reference AR1500-PB/PB
