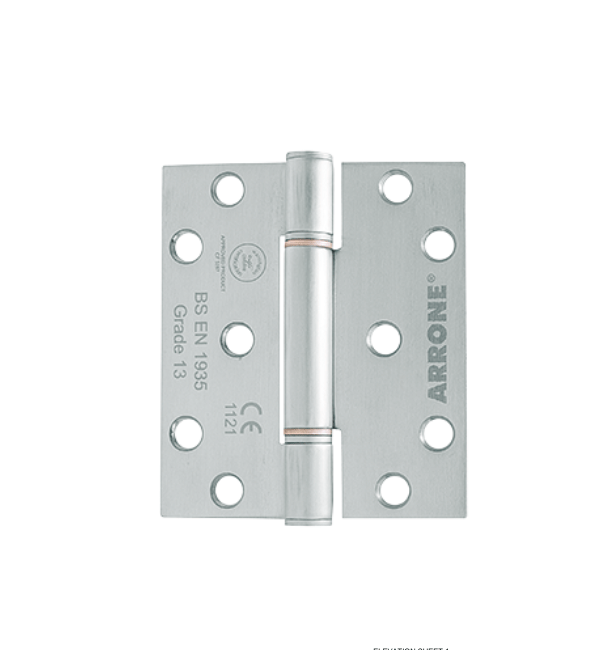

HOPPE AR8380 Arrone Concealed Bearing Hinges - Grade 13 Stainless Steel for Heavy Duty & Fire Doors

Discover the exceptional performance and durability of the HOPPE AR8380 Arrone Concealed Bearing Hinge. Engineered for demanding applications, this hinge combines robust Grade 304 stainless steel construction with smooth-operating phosphor bronze bearings, ensuring longevity and reliable functionality for heavy wooden and fire-rated doors.

Key Features:

• Premium Construction: Crafted from high-quality Grade 304 stainless steel with phosphor bronze washers for superior durability and smooth operation.
• High Performance Grade: Meets Grade 13 requirements, making it ideal for heavy-duty use.
• Heavy Door Support: Capable of supporting wooden doors weighing up to 120 kg.
• Fire Door Compliance: Rigorously tested to BS EN 1634-1, suitable for 30, 60, 90, and 120-minute timber fire doors and 240-minute steel fire doors.
• Certified Quality: CE Marked (AC5027), UKCA Marked (UK-AC7676), and Certifire Approved (CF5197) for guaranteed reliability and safety.
• Precise Specifications: Features dimensions of 100x88x3 mm with square corners and a sophisticated Satin Stainless Steel (SSS) finish.
• Easy Installation: Includes 5 holes ANSI template drilled and countersunk, along with 30 x 304 grade stainless steel positive countersunk wood screws for secure timber door fixing.

Technical Specifications:

• Material: Stainless Steel (Grade 304)
• Bearing: Phosphor Bronze Washer
• Hinge Grade: Grade 13
• Shape: Square

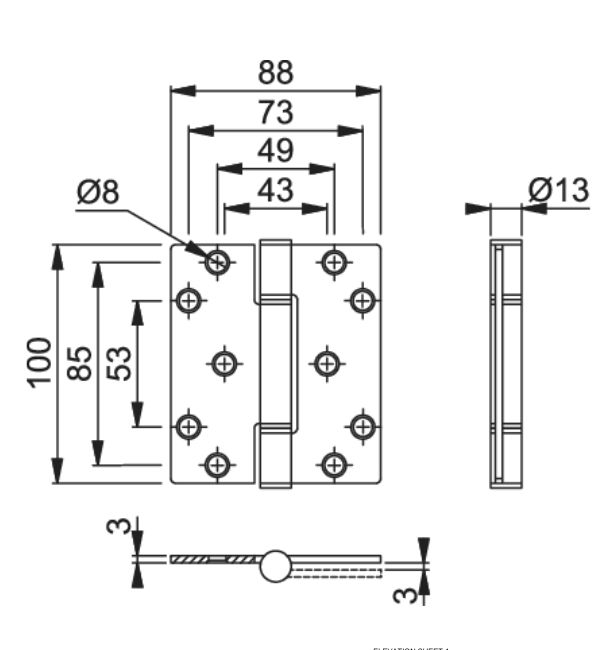

• Dimensions: 100x88x3 mm
• Drill: 5 holes ANSI template drilled, countersunk
• Door Weight Capacity: Up to 120 kg
• Fixings: 30 x 304 grade stainless steel positive countersunk wood screws (for timber doors)
• Leaf Corner: Square Corners
• Finish: SSS Satin Stainless Steel
• Material Thickness: 3 mm
• Door Type: Wooden Door
• Testing & Certification:
  • BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13)
  • BS EN 1634-1 (Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minute on steel fire doors)
  • CE Marked: AC5027
  • UKCA Marked: UK-AC7676
  • Certifire Approved: CF5197
  • CE DOP: HUK0049
  • UKCA DOP: HUK0049-UK
