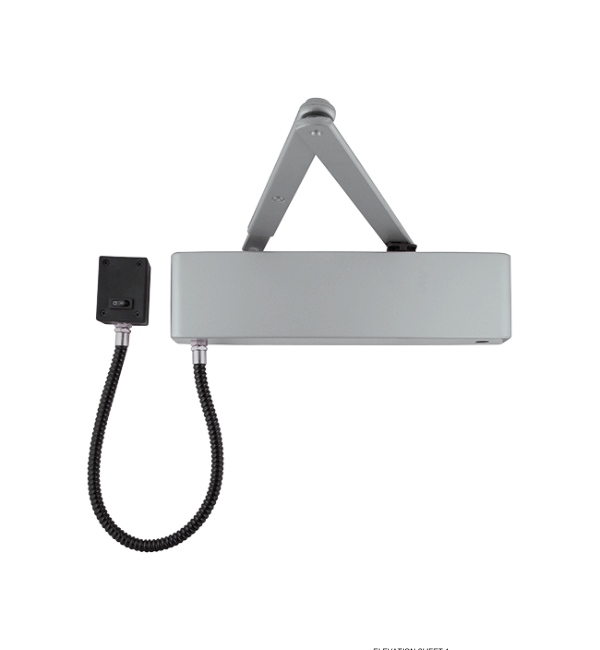

Hoppe Arrone AR1998 Electromagnetic Door Closer - Silver Finish (Item 87132361)

The Hoppe Arrone AR1998 electromagnetic door closer is a high-performance overhead door closer designed for fire door applications requiring electromagnetic hold-open or swing-free operation. Engineered with a rack & pinion electro-magnetic mechanism, it ensures smooth, controlled closing and latching, along with electro hold-open/swing free functionality, making it ideal for wooden fire-rated doors. This closer is CE and UKCA marked and certified for compliance with BS EN 1154:1997 and BS EN 1634-1 standards, tested for 30, 60, and 120-minute timber fire doors.

Product Details:

• Power Size: Fixed size EN 4
• Maximum Door Width: 1100 mm (Fig 1), 950 mm (Fig 6)
• Maximum Door Weight: 80 kg (Fig 1), 60 kg (Fig 6)
• Mechanism: Rack & Pinion with Electromagnetic function
• Functions: Closing, Latching, Electro Hold-Open, Swing Free
• Certifications: CE Marked (AE0017), UKCA Marked (UK-AD7697)
• Fire Rating: Up to 120 minutes on timber fire doors
• Finish: SE Silver Enamel
• Cover: Slimline Cover
• Fixings: Timber Door
• Opening Angle: Max 105°

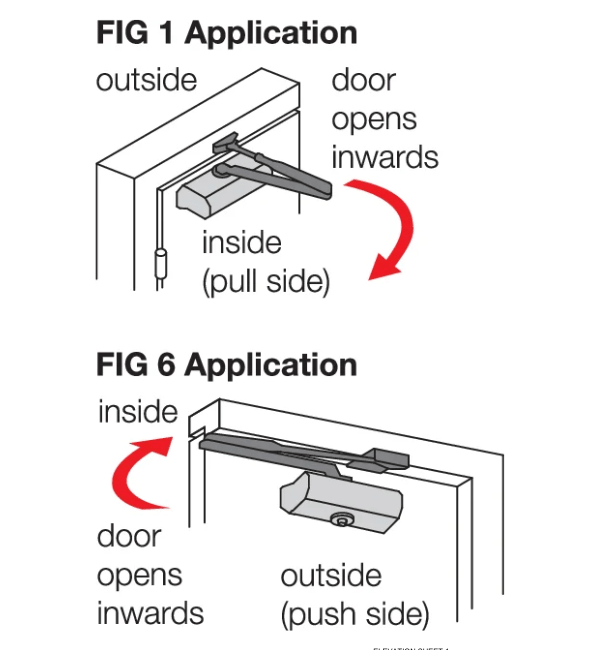

• Mounting Positions: Fig 1 & Fig 6
• Arm Type: Scissor arm with fixed joint, hold-open/swing free
• Dimensions: 280x76x49 mm
