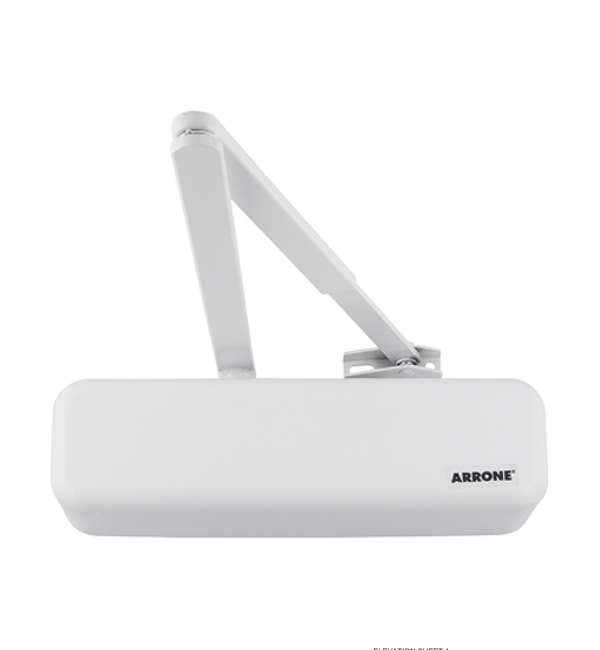

Hoppe Arrone AR3500 Overhead Surface Mount Door Closer | Traffic White Finish (RAL 9016) | Item 87101074

The Hoppe Arrone AR3500 Door Closer (Item 87101074) is a high-performance, overhead surface-mounted door closer engineered for optimal door control in demanding environments. Designed for timber and steel fire-rated doors, it is ideal for commercial, public, and educational buildings.

Key Features and Benefits:

• Adjustable Power Size: Features adjustable power from EN 2 to EN 4, suitable for doors up to 1100 mm wide and 80 kg.
• Enhanced Functionality: Includes backcheck, spring tension adjustment, and controllable closing and latching speeds for smooth operation.
• Durable Construction: Built with a robust rack and pinion mechanism for reliable, long-term performance.

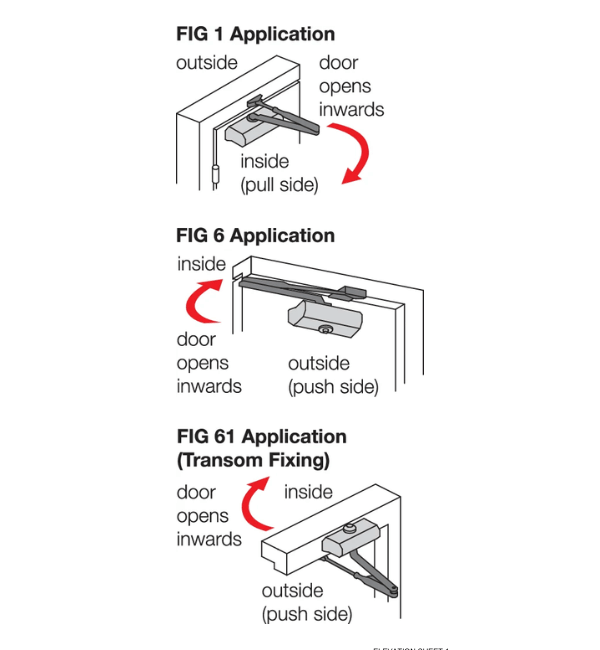

• Versatile Installation: Supports multiple arm applications including Fig 1, Fig 6, and Fig 61 with a detachable scissor arm.
• Aesthetic Appeal: Boasts a sleek, designer cover finished in RAL 9016 Traffic White, enhancing the look of any door.
• Fire Safety Certified: Tested to meet stringent BS EN 1154:1997 and BS EN 1634-1 standards for fire doors (30/60/120 min timber; 240 min steel). Certified for CE and UKCA.
• Compliance Note: The delayed action feature is not certified for use on fire doors to maintain compliance with CE and UKCA certifications.

Product Details:

• Power Size: EN 2 to 4 (adjustable)
• Mechanism Type: Rack & pinion
• Arm Application: Fig 1, Fig 6, Fig 61
• Arm Type: Scissor arm, detachable joint, flat form, adjustable
• Maximum Door Width: 1100 mm
• Maximum Door Weight: 80 kg
• Finish: RAL 9016 Traffic White (diamond white)
• Cover Type: Designer cover
• Mechanism Functions: Backcheck, spring tension adjustment, closing & latching speed
• Opening Angle: Max 180°
• Fire Rating: 30/60/120 min timber; 240 min steel doors
• Certifications: CE (AD0009), UKCA (UK-AD7695), Certifire CF294
• Fixings: Suitable for timber doors

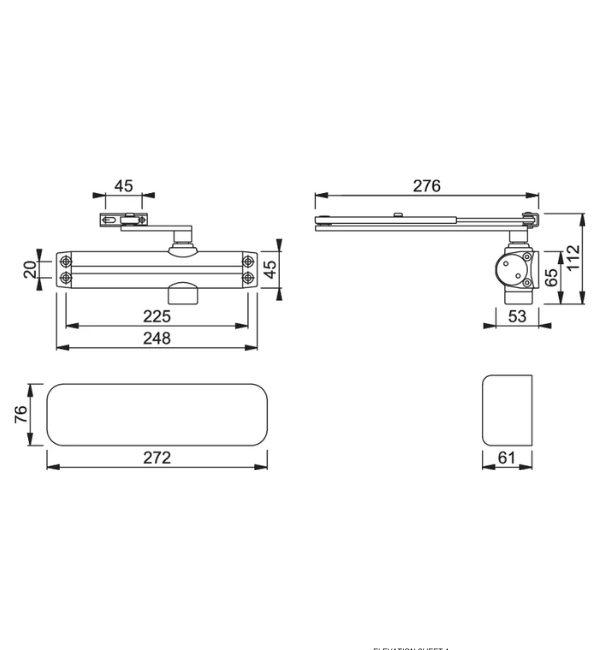

• Dimensions: 248 x 45 x 53.5 mm; Fixing centres: 225 x 20 mm
• Note: Delayed action function not certified for use on fire doors
