Kawneer Pressure Plate Screws for AA100 Curtain Wall

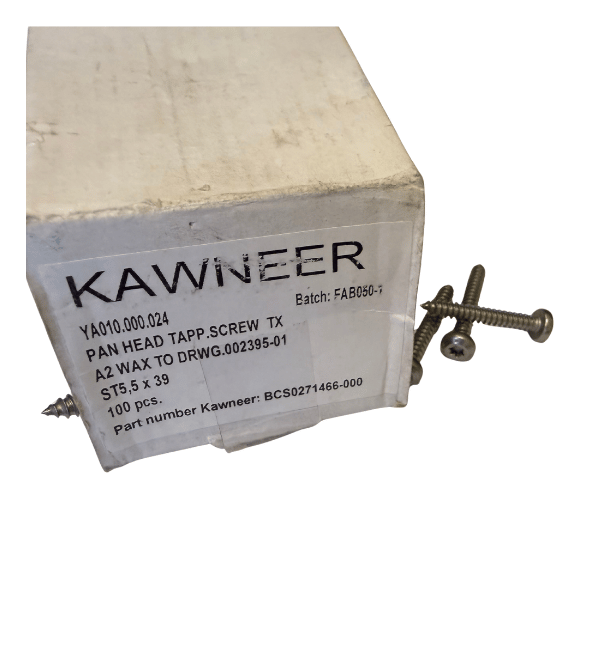

Pivox supplies genuine Kawneer pressure plate screws for the AA100 curtain wall system, part number CW-BCS0271466. These Kawneer pressure plate screws are the original waxed fixing used to secure pressure plates onto Kawneer AA100 curtain walling, and each box supplies enough Kawneer pressure plate screws for a full run of glazing bars. Sold in boxes of 100, with the listed price covering the full box rather than a single screw.

Specification

The special Torx T25 drive gives a clean, slip-free fit when torquing down the pressure plate, and the waxed coating helps the screw seat smoothly into the AA100 bar without binding.

• Screw size 5.5 x 39mm
• Drive type special Torx T25
• Finish waxed for smooth fixing
• Genuine Kawneer part number 271466-00
• Application Kawneer AA100 curtain wall pressure plates
• Supplied 100 per box, priced per box

Ordering

Order by the box to keep a full curtain wall run consistent, since AA100 pressure plate fixing calls for the same screw type and torque setting throughout. Contact Pivox if you need a part count for a specific glazing bar length.
