Schuco 209796 Centre Strike Plate | Flat 18 x 5.5mm -Pack of One

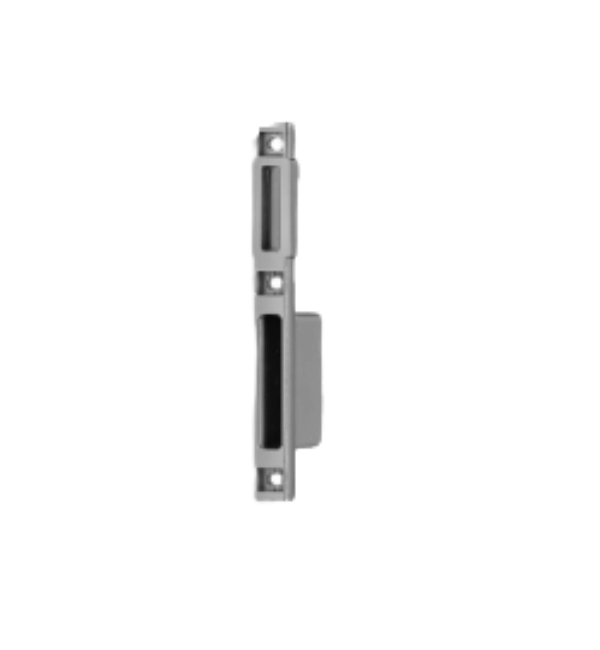

The Schüco 209796 is a centre strike plate for Schüco ADS HD multi-point locking gear, supplied as a single unit and fitted at the main lock position to receive the latch and bolt. It has a flat face plate measuring 18mm x 5.5mm in silver-coloured brass, and the same part number covers left-hand and right-hand doors in both inward and outward opening applications, so handing does not need to be specified when ordering.
Technical Specification
The plate is a flat face plate type rather than a U-shaped one, so it suits frames prepared for a flush strike detail. It is manufactured in brass with a silver-coloured finish to match the polished nickel plated latches and bolts on the ADS HD lock gear.
- Face plate profile: flat
- Face plate size: 18mm x 5.5mm
- Material: brass, silver-coloured
- Position: centre, at the main lock case
- Handing: non-handed, LS and RS, inward and outward opening
- Quantity: 1 per door
- Part number: Schüco 209796
Where It Fits
The 209796 sits at the main lock position on ADS HD rebated doors and receives the latch and bolt from the centre case. On 3-point gear such as the 211536 swing bolt lock with roller latch, or the 211397 version with standard latch, this centre plate is used in combination with the two-part top and bottom strike plates that receive the swing bolts.
Ordering Alongside the Lock
Strike plates are supplied separately from the lock body on ADS HD multi-point gear, so the 209796 is ordered as its own line, one per door. Several other components are also separate items.
- Centre strike plate: Schüco 209796, 1 off
- Two-part strike plates, top and bottom: Schüco 209805
- Fixings: Schüco Art. No. 205 469
- Latch striker: required for outward-opening doors
- Cylinder: profile cylinder with 30° tongue setting, plus rosette
