Schuco 209805 Two Part Strike plates (Top/Bottom) -Pack of Two

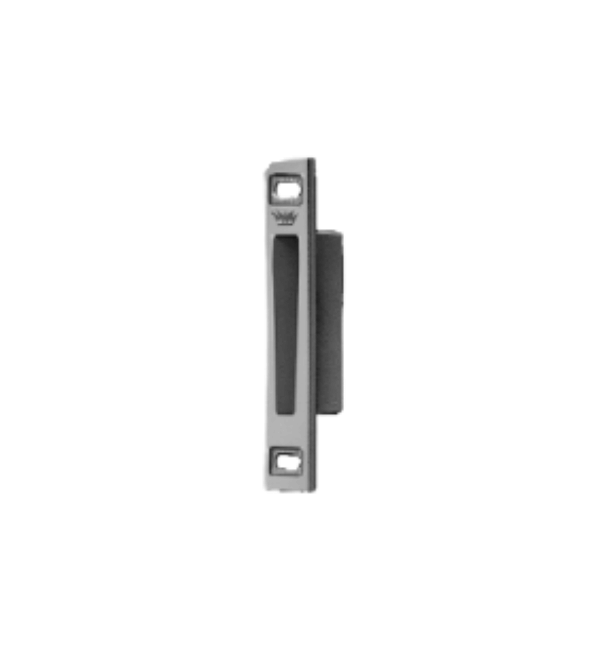

The Schüco 209805 is a two-part strike plate set supplied as a top and bottom pair, designed to receive the swing bolts on Schüco ADS HD multi-point locking gear. These strike plates are ordered separately from the lock body, and the same part number covers left-hand and right-hand doors in both inward and outward opening applications, so no handing needs to be specified at the point of order.
What the Set Includes
The 209805 is a two-piece set rather than a single item. One plate is fitted at the head of the frame and one at the foot, aligned to the upper and lower swing bolt positions on the lock gear.
- Configuration: 2-part set, top and bottom
- Handing: non-handed, LS and RS
- Door opening: inward and outward
- Part number: Schüco 209805
Compatibility
The set is specified for Schüco ADS HD rebated doors running multi-point swing bolt locking, including the 211536 swing bolt lock with roller latch and the 211397 version with standard latch. Because the plates locate the swing bolts, they should be fitted to the frame centres that match the lock gear in use — on the 3-point gears that is the swing bolt case positioned above and below the main lock case.
Ordering Alongside the Lock
Strike plates are not supplied with the lock body on ADS HD multi-point gear, so the 209805 set is ordered as a separate line. Fixings (Schüco Art. No. 205 469) are likewise a separate item, as is the latch striker required for outward-opening doors and the profile cylinder with 30° tongue setting and rosette.
- Strike plates: Schüco 209805, 2-part
- Fixings: Schüco Art. No. 205 469
- Latch striker: required for outward-opening doors
- Cylinder: profile cylinder with 30° tongue setting, plus rosette
