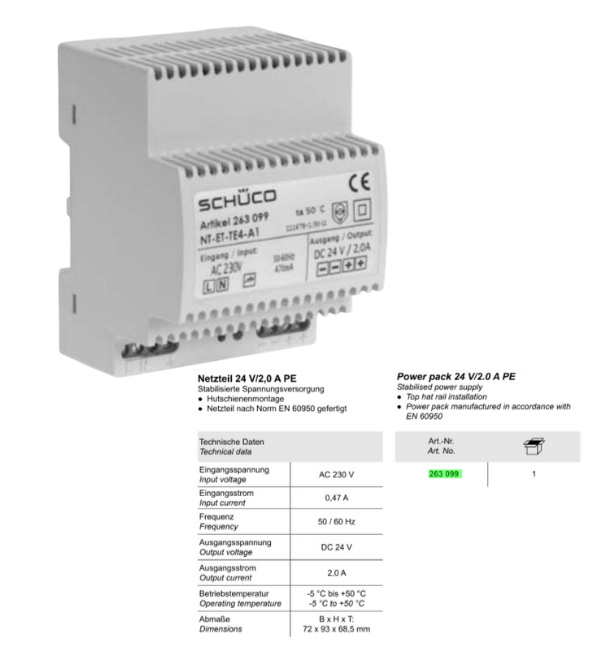

Schüco 263099 Power Pack 24 V / 2.0 A PE

The Schüco 263099 is a stabilised power supply delivering 24V DC at 2.0A from a 230V AC mains input. Designed for top hat (DIN) rail installation inside a control panel or enclosure, this power pack is manufactured in accordance with EN 60950 and provides the regulated low-voltage supply required by Schüco door access control, electric locking and automation components.

Technical Specification

The unit is a stabilised supply rather than an unregulated transformer, so the 24V DC output stays steady under varying load — important for electric strikes, motor locks and control units that draw current in bursts. It draws 0.47A on the input side and works on either 50Hz or 60Hz mains.

• Article number: Schüco 263099
• Input voltage: 230V AC
• Input current: 0.47A
• Frequency: 50 / 60Hz
• Output voltage: 24V DC
• Output current: 2.0A
• Operating temperature: -5°C to +50°C
• Dimensions (W x H x D): 72 x 93 x 68.5mm
• Mounting: top hat rail (DIN rail)
• Standard: EN 60950
• Quantity: 1

Installation

The power pack clips directly onto standard top hat rail, which makes it straightforward to mount alongside timers, relays and control modules in a distribution enclosure. At 72mm wide it occupies a compact footprint on the rail. The -5°C to +50°C operating range allows installation in unheated risers and plant spaces as well as internal panels, though the unit is not intended for direct external mounting.

Applications

The 263099 supplies 24V DC to Schüco door hardware and electrical accessories on aluminium door and window systems, including electric strikes, motorised locking, access control readers and associated control gear. The 2.0A output gives enough headroom to run a lock and its control equipment from a single supply, or to share across more than one device where current draw allows. Total connected load should be checked against the 2.0A rating before specifying.

Ordering

• Supplied: 1 unit
• Format: DIN rail mounted power pack
• Output: 24V DC, 2.0A stabilised
• Suits: Schüco electric locking, access control and door automation
