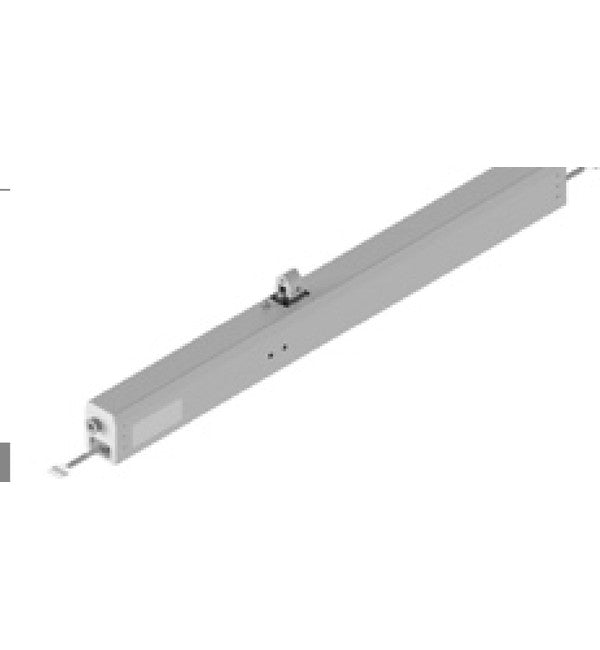

Schüco 291719 – Chain Actuator D6 230V, Stroke 600mm

Genuine Schüco 291719 chain actuator D6 (Kettenantrieb), part of the Schüco DriveTec 230V system, for bottom-hung and side-hung windows.

• Article number: 291719
• Stroke: 600mm
• Dimensions (W x H x D): 769 x 40 x 56mm
• Rated voltage: 230V AC (50Hz)
• Rated current: 0.2A
• Rated power consumption: 46W
• Protection rating: IP32
• Ambient temperature: -5°C to +60°C
• Traction/Thrust: 600N / 600N
• Closing force: 3000N (installation dependent)
• Speed: 8mm/s
• Genuine Schüco replacement part

Please check the required stroke length against the specification above before ordering to ensure correct fit.
